DTCT-AIDC模块化微型边缘智算一体机（风冷）
DTCT-AIDC

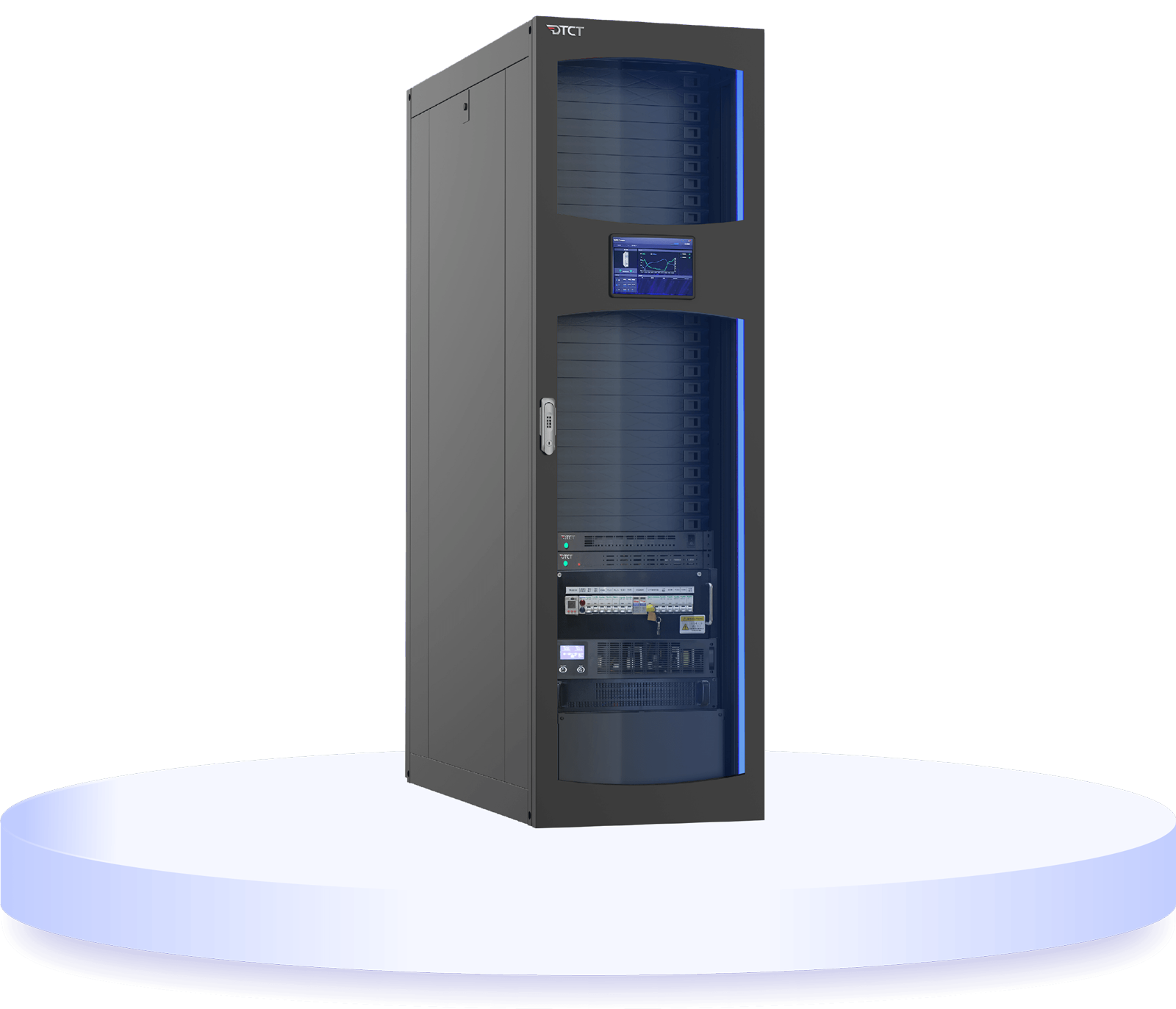

DTCT-AIDC Modular Micro Edge Intelligent Computing All-in-One Machine (Air-cooled)
DTCT-AIDC Modular Micro Edge Intelligent Computing All-in-One Machine (Air-cooled)
PRODUCT OVERVIEW
产品概述
PRODUCT OVERVIEW
The most cost-effective and fastest-to-deploy edge intelligent computing solution, suitable for most conventional scenarios.
PRODUCT FEATURES
产品特点
PRODUCT FEATURES
01
Ultra-compact, Plug-and-Play
All-in-one integration of computing, storage, network, cooling and monitoring. Compact size and flexible deployment.
02
Quick Launch in 1-2 Days
Pre-integrated in factory, ready for use upon delivery with complicated computer room renovation eliminated.
03
Cost-effective Air Cooling
Intelligent variable-frequency air conditioner, stable high-power operation, low deployment cost, saving over 60% of space.
04
Powerful Edge AI Computing Power
Supports GPU/NPU acceleration for low-latency local inference, keeping data within domain.
产品优势
PRODUCT ADVANTAGES
PRODUCT ADVANTAGES
Construction Period
Space Occupation
Equipment Integration
Compatibility
Energy Saving
Operation
After-sales Maintenance
Modular Data All-in-One Machine
Within 7 Days
Modular rack deployment with high integration to reduce room footprint
One-stop supply, pre-integrated, all-in-one and centrally managed
Factory pre-integration, pre-commissioning and full testing for high compatibility
Built-in rack air conditioner cools only in-cabinet equipment, saving over 50% energy vs traditional solutions
Fully enclosed cabinet operation with high cleanliness and stable performance
Unified maintenance with multi-level service plan; 7×24 unattended operation to cut O&M cost
Traditional Computer Room
After-sales Maintenance
Subsystems including UPS, air conditioners and cabinets require separate spaces
Multi-vendor supply, separate construction and independent management
Complex commissioning and poor compatibility for multi-brand integrated products
PUE: 2.0-3.0, low cooling capacity utilization
Prone to dust accumulation, jeopardizing stable operation and shortening equipment service life
Multi-party maintenance leads to unclear responsibility and delayed response for associated faults
PRODUCT ADVANTAGES
产品参数
PRODUCT ADVANTAGES
| Core Configuration Items | Nano (Edge Inference Deployment) | Pro (Enterprise Training & Inference Integration) | Pro Plus (Enterprise Training & Inference Integration) | Ultra (Cluster Operation Grade) | Ultra Plus (Cluster Operation Grade) | |
| Infrastructure Base | Cabinet Cluster Specification | Single Unit | Dual Unit | |||
| Green Variable-Frequency Refrigeration System | Rack-mounted 4kW Air Conditioner, Air Cooling + Fluorine Pump | Rack-mounted 8kW Air Conditioner, Air Cooling + Fluorine Pump | Rack-mounted 15kW Air Conditioner, Air Cooling + Fluorine Pump | 20kW Rear Door Heat Exchanger Air Conditioner | ||
| Power Supply & Distribution System | 6kVA Rack-mounted UPS | 10kVA Rack-mounted UPS | 15kVA Rack-mounted UPS | 20kVA Rack-mounted UPS | 30kVA Rack-mounted UPS | |
| Battery Backup System | Battery Pack / Lead-acid Battery Configurable on Demand | Lead-acid Battery Configurable on Demand | ||||
| In-cabinet Power & Environment Monitoring System | Basic In-cabinet Power & Environment Monitoring + IT Equipment Monitoring | Basic In-cabinet Power & Environment Monitoring + IT Equipment Monitoring + O&M Agent | ||||
| HMI Touch Screen | 10-inch Embedded Touch Screen | |||||
| Standard General Function Kits | In-cabinet Lighting, Blue Backlight Components | |||||
| IoT Communication Module | Basic IoT Communication | Mobile APP + VPDN IoT Communication | Mobile APP + VPDN IoT Communication + Cluster-level Remote Management | |||
| Core IT Hardware | Core Computing Parameters | 2-card Server, Single Card ≥48GB, Total VRAM Computing Power ≥200TFLOPS | 4-card Server, Single Card ≥48GB, Total VRAM Computing Power ≥1.1PFLOPS | 8-card Server, Single Card ≥48GB, Total VRAM Computing Power ≥2.2PFLOPS | 16-card Cluster, Single Card ≥64GB, Total VRAM Computing Power ≥4.6PFLOPS | 24-card Cluster, Single Card ≥64GB, Total VRAM Computing Power ≥6.9PFLOPS |
| AI Computing Ecosystem Configuration | Global Ecosystem Standard: NVIDIA L20 | Global Ecosystem Standard: NVIDIA L40s | Global Ecosystem Standard: NVIDIA L40s | Global Ecosystem Standard: NVIDIA PRO6000D | Global Ecosystem Standard: NVIDIA PRO6000D | |
| Domestic Secure Ecosystem Standard: Hygon K100 AI / Huawei Ascend Atlas 300I Duo, etc. | Domestic Secure Ecosystem Standard: Muxi C500 / Huawei Ascend 910B, etc. | Domestic Secure Ecosystem Standard: Muxi C500 / Huawei Ascend 910B, etc. | Domestic Secure Ecosystem Standard: Hygon BW1000 / Huawei Ascend 910B, etc. | Domestic Secure Ecosystem Standard: Hygon BW1000 / Huawei Ascend 910B, etc. | ||
| General Computing Server System | Standard: 2 × 2U Entry-level Servers, expandable up to 3 | Standard: 3 × 2U Mainstream Servers | Standard: 6 × 2U Mainstream Servers, expandable up to 11 | Standard: 6 × 2U Mainstream Servers, expandable up to 9 | ||
| Storage System | Local SSD Storage: 1.92TB×2 | Distributed Storage: 3.84TB SSD×4 | Distributed Storage: 7.68TB SSD×4 | Enterprise Distributed Storage: 7.68TB SSD×8 | Flagship Distributed Storage: 7.68TB SSD×12 | |
| RAID1, non-expandable | Usable Capacity ≈11TB, expandable | Usable Capacity ≈22TB, expandable | Usable Capacity ≈45TB, Scale-Out supported | Usable Capacity ≈68TB, Scale-Out supported | ||
| Security Protection System | Basic Firewall | Enterprise-grade Firewall | ||||
| Network System | 10G Access Switch | 1 × 25GbE Cluster Switch, 1 × 10G Access Switch | ||||
| Platform Software Layer | Hyper-converged Infrastructure Platform | Resource Pooling + VM Isolation | Basic Functions + Cluster Management + O&M Portal | Advanced Functions + Distributed Storage + Disaster Recovery | ||
| AI Computing Platform | Model Deployment + Version Management + Model Repository | Basic Functions + GPU Allocation + Inference Monitoring + Model Fine-tuning | Advanced Functions + Model Training | |||
| AI Agent Platform | Basic Q&A Interaction + Knowledge Base Management | Basic Functions + Visual Low-code Orchestration + One-click App Release | Basic Functions + Visual Low-code Orchestration + One-click App Release + Enterprise Templates | Advanced Functions + Multi-tenant App Isolation + Operation-grade Scenario Templates | ||
| AI Operation Control Platform | / | Basic Functions Enabled | Full Functions Enabled | Full Functions Enabled + Unified Operation & Control | ||
| Model Pre-installation Layer | Pre-installed Baseline Models | Qwen3.5 9B / Llama3.1 8B | Qwen3.5 35B | Qwen3.5 35B / 70B | Llama3.1 70B / Qwen3.5 122B | Qwen3.5 122B |
| Scenario Application Layer | Pre-installed Baseline Scenarios | Multi-channel Video Intelligent Analysis, Real-time Speech Transcription, Edge Lightweight Q&A (≥3) | Enterprise Private Knowledge Base, Omnichannel Intelligent Customer Service, Document Intelligent Analysis, Low-code Agent Building, Data Visualization Analysis (≥5) | Full Pro Scenarios + Multi-model Parallel Service, Industrial Visual Inspection (≥8) | Full Pro Plus Scenarios + Multi-tenant Computing Operation, Inference Service Platform, Billing, Full-link Audit, Unified API Gateway (≥20) | Full Ultra Scenarios + Cross-region Resource Scheduling, Unified Cluster Control, Multi-cluster Disaster Recovery (≥30) |
| Industry Solution Support | / | Standard Industry Packages for Government / Manufacturing / Finance / Education | Customized Exclusive Solutions for All Industries | Cross-industry Customized Exclusive Solutions for All Industries | ||
| ▋ Six Major Functions | ● Fusion Analysis ● Full Monitoring ● Topology Management ● Unified Management ● Asset Management ● Auxiliary Management |
|
| ▋ Five Core Advantages | Centralized Control | Centralized management of multiple all-in-one units |
| Diversified Monitoring | Multiple monitoring modes including large screen, list and 3D view | |
| Real-time Monitoring | Full-screen dynamic display of real-time room data and alarms | |
| Eco-friendly Design | Supports power consumption management and PUE display | |
| Systematic Management | Access control & video management supported; multi-level alarm linkage configurable | |
| ▋ Touch Screen | Displays environmental monitoring data synchronously on the all-in-one touch screen For intuitive viewing of equipment metrics Operators can instantly check room status via the touch panel |
|
