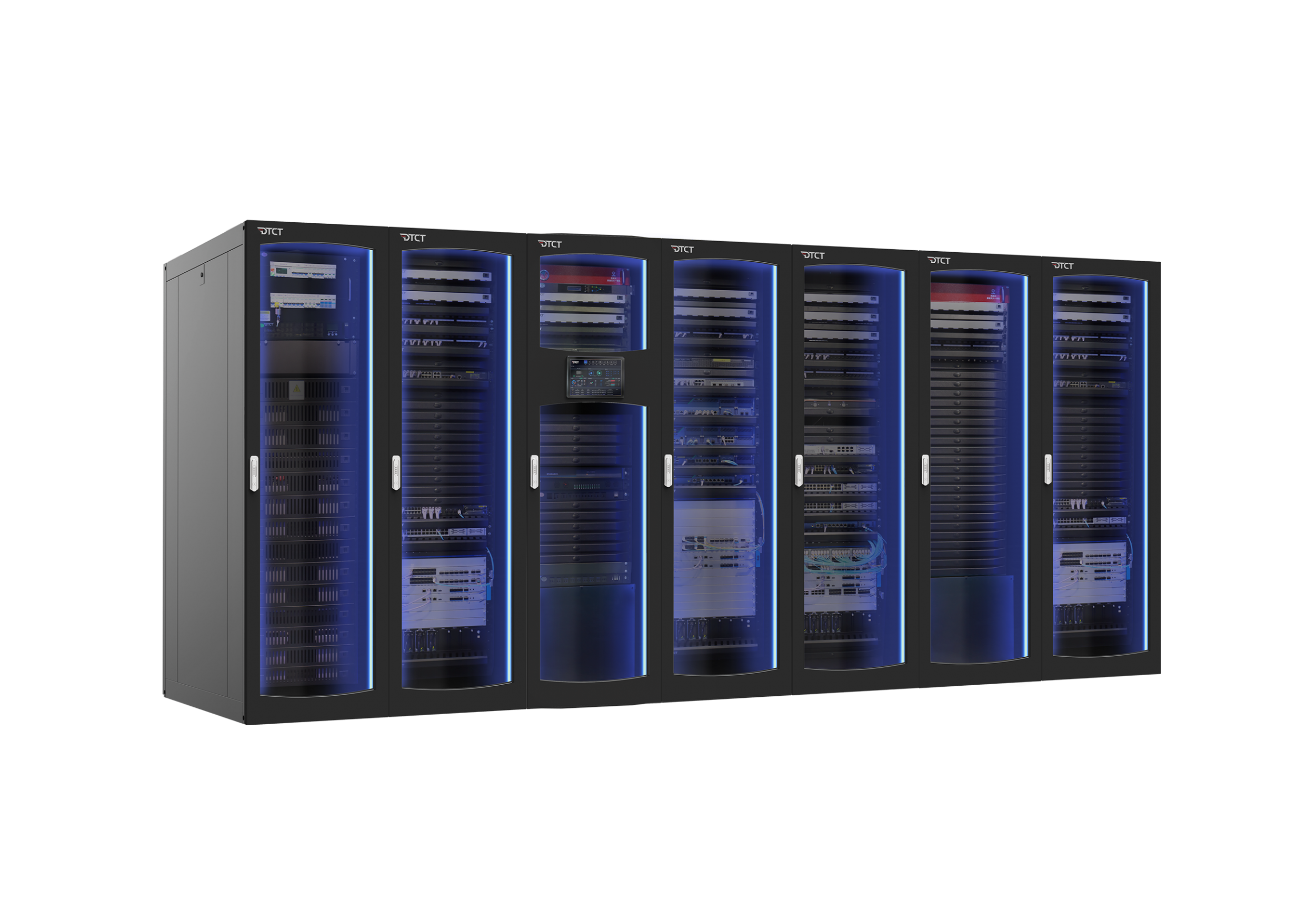

DTCT InduX Intelligent Core Branch Computer Room Integrated Machine

DTCT-InduX Smart Core Branch and Sub-branch Computer Room All-in-One Machine

DTCT-InduX Smart Core Branch and Sub-branch Computer Room All-in-One Machine

图片展示
图片展示

PRODUCT OVERVIEW

PRODUCT OVERVIEW

The DTCT-InduX intelligent core branch and sub-branch machine room all-in-one device represents the mainstream trend in the construction of machine rooms for banking institutions at all levels. It facilitates the sharing of space and energy between technology and security machine rooms, while maintaining isolation between management and usage. The device features functional partitions for network equipment, monitoring equipment, and alarm equipment, enhancing the level of bank information security. It empowers banks with technology, reduces consumption, increases efficiency, and promotes refined management.

PRODUCT FEATURES

PRODUCT FEATURES

01

Efficient Integration

High-reliability power supply & distribution architecture with dual-input and UPS backup power to ensure 7×24-hour uninterrupted core business operation







02

Stable & Reliable

Silent design friendly to office environment; exquisite appearance matching the professional image of banking industry







03

Simplified O&M

Integrated intelligent access control, video surveillance and environmental sensing to meet security compliance requirements







04

High-density Micro Integration

Modular rapid deployment enables zero waiting for branch opening and renovation projects







产品优势

PRODUCT ADVANTAGES

图片展示

PRODUCT ADVANTAGES

Construction Period





Space Occupation





Equipment Integration





Compatibility





Energy Saving





Operation





After-sales Maintenance



Modular Data All-in-one Machine

Within 7 Days

Modular rack deployment, highly integrated, reduces computer room footprint

One-stop supply, pre-integrated, all-in-one, unified management

Factory pre-integration, pre-commissioning and full testing with high compatibility

Built-in rack air conditioner only cools in-cabinet equipment, saving over 50% energy compared with traditional solutions

Fully enclosed cabinet operation, double-layer hollow glass, high cleanliness and stable operation

Unified maintenance with multi-level service plans; supports 7×24 unattended operation to cut O&M costs



Traditional Computer Room





After-sales Maintenance





Subsystems such as UPS, air conditioners and cabinets require separate spaces





Multi-supplier sourcing, separate construction and independent management





Integration of products from multiple vendors leads to complex commissioning and poor compatibility





PUE ranges from 2.0 to 3.0 with low cooling utilization





Prone to dust accumulation, which impairs stable operation and shortens equipment service life





Maintained by multiple vendors; unclear responsibility and delayed response for correlated faults



PRODUCT SPECIFICATIONS

PRODUCT SPECIFICATIONS



DTCT-InduX Zhihe Branch Computer Room All-in-one Machine
DTCT-BankMod Zhihe Branch Computer Room All-in-one Machine 3-Cabinet Unit 7-Cabinet Unit
Dimension Specification 1800mm*1000mm*2000mm 4600mm*1000mm*2000mm
Cooling System Max cooling capacity 4kW, air-cooled Max cooling capacity 8kW*2, air-cooled
Power Distribution System Max 10kVA/9kW; mains and UPS power distribution for low-voltage intelligent facilities inside the branch, including power supply for counter and computer room equipment Max 2 units of 10kVA/9kW; mains and UPS power distribution for low-voltage intelligent facilities inside the branch, including power supply for counter and computer room equipment
Power per Cabinet ≤3kW
Integrated Monitoring System Temperature & humidity, smoke detection, water leakage detection, air conditioner, power distribution, UPS and lead-acid battery monitoring Temperature & humidity, smoke detection, water leakage detection, air conditioner, power distribution, UPS, lead-acid battery monitoring, front door fingerprint lock
Backup Time 15min~240min configured according to actual requirements
Available Equipment Space ≥70U ≥154U





▋  Six Major Functions ● Fusion Analysis    ● Comprehensive Monitoring    ● Topology Management
● Unified Management    ● Asset Management    ● Auxiliary Management
▋  Five Major Advantages Centralized Control Centralized management of multiple all-in-one machines
Diversified Monitoring Multiple monitoring modes including large-screen mode, list mode and 3D mode
Real-time Monitoring Full-screen dynamic display of real-time computer room monitoring data and alarm data
Green Product Design Supports computer room energy consumption management and PUE display
Systematic Management Supports access control and video management; flexible multi-level alarm configuration for alarm linkage
▋  Touch Screen Dynamic environment monitoring data is synchronously displayed on the all-in-one machine touch screen
Allows users to view device data intuitively
Administrators can judge the computer room operating status immediately via the touch screen
