DTCT-ModuC模块化数据中心
DTCT-ModuC

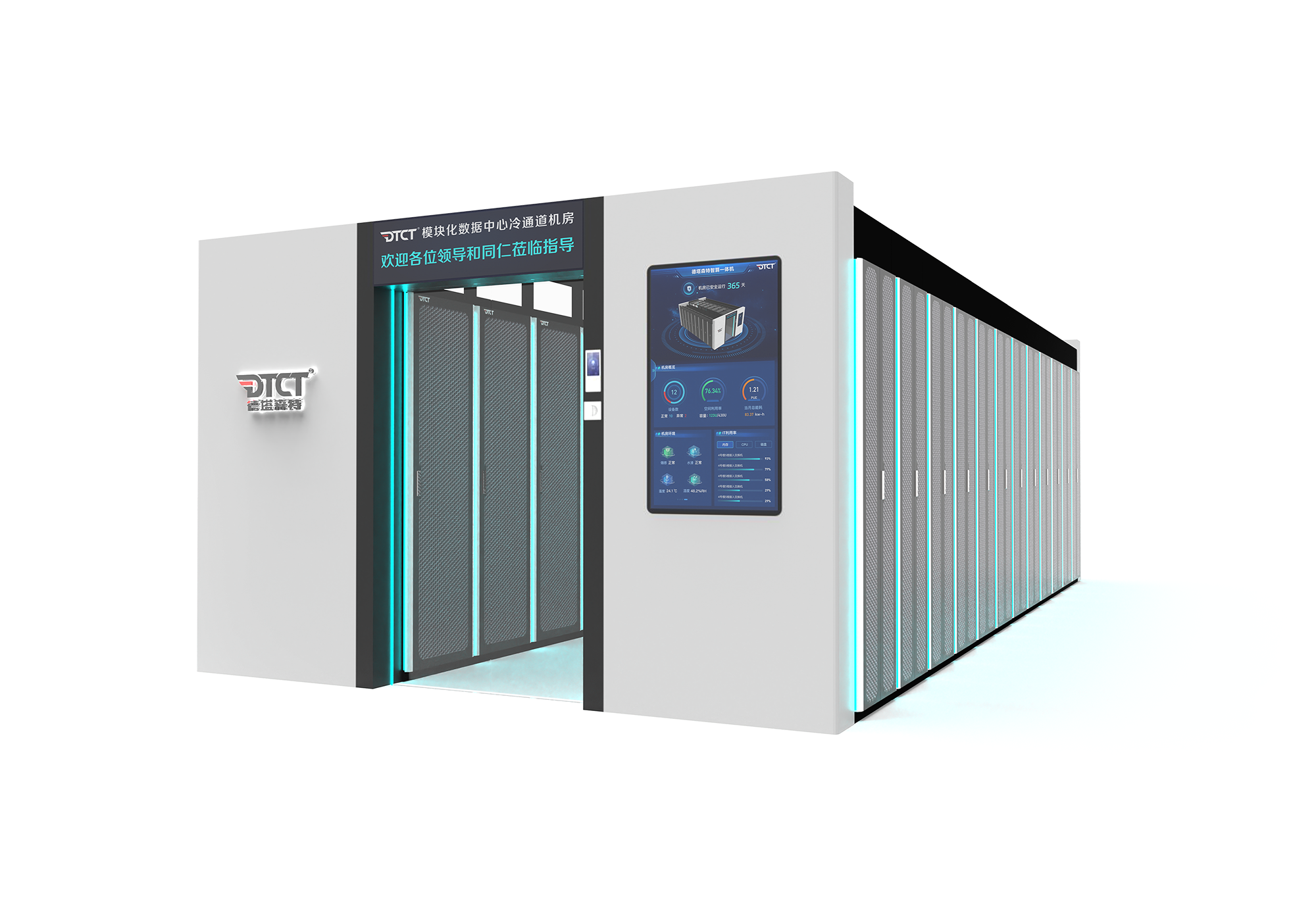

DTCT- Moduc Modular Data Center
DTCT- Moduc Modular Data Center
PRODUCT OVERVIEW
产品概述
PRODUCT OVERVIEW
Relying on a full-stack integrated architecture, Datacenter boasts a comprehensive solution that spans the entire lifecycle of data center infrastructure, encompassing cabinets, power supply and distribution, precision cooling, integrated cabling, and dynamic environmental monitoring. With a bottom-level homogeneous design and intelligent global collaboration, it offers a one-stop solution that meets the core demands of modern data centers, including rapid deployment, minimal operation and maintenance, and low-carbon efficiency.
PRODUCT FEATURES
产品特点
PRODUCT FEATURES
01
Integrated & Efficient
Full‑stack integrated architecture, unified hardware‑software design, highly‑standardized subsystems, plug‑and‑play deployment for enhanced reliability
02
Flexible & Efficient
Full‑matrix products of power supply, cooling and cabinets. Custom combination, flexible deployment, elastic expansion for full‑scene adaptation
03
Green & Energy‑saving
High‑efficiency UPS with up to 97% conversion rate
Enclosed cold/hot aisle, PUE as low as 1.14
04
Secure & Intelligent
All‑in‑one integration of compute, storage, network, liquid cooling and monitoring. Compact size for flexible deployment.
产品优势
PRODUCT ADVANTAGES
PRODUCT ADVANTAGES
Construction Period
Space Occupation
Equipment Integration
Compatibility
Energy‑saving
Operation
After‑sales Maintenance
Modular Data All-in-One
Within 7 Days
Modular rack deployment, high integration to reduce room footprint
One-stop supply, pre-integrated all-in-one with unified management
Factory pre-integration, pre-commissioning & full testing for high compatibility
Built-in rack air conditioner cools cabinet devices only, saving over 50% energy vs traditional solutions
Fully enclosed cabinet operation, high cleanliness & stable performance
Unified maintenance with multi-level plans; 7×24 unattended operation to cut O&M costs
Traditional Data Center
After‑sales Maintenance
Separate spaces required for UPS, air‑conditioning, cabinets and other subsystems
Multi‑vendor supply, separate construction and independent management
Complex integration & commissioning, poor compatibility among multi‑vendor products
PUE: 2.0‑3.0, low cooling efficiency
Dust accumulation risks, unstable operation and shortened equipment lifespan
Multi‑party maintenance, ambiguous responsibility for correlated faults and slow response
PRODUCT SERIES
PRODUCT ADVANTAGES
产品参数
PRODUCT ADVANTAGES
| Item | DTCT-Moduc Modular Data Center | ||
| Modular Data Center System | Dimension Specification | Single-row Sealed Cold/Hot Aisle (L×W×H) | |
| L×2455×2340mm (2570mm*), L ≤ 15 m L×2455×2540mm (2770mm*), L ≤ 15 m 2570mm*/2770mm* refers to total height with skylight opened |
|||
| Double-row Sealed Cold/Hot Aisle (L×W×H) | |||
| L×3600×2370mm (2570mm*), L ≤ 15 m L×3600×2570mm (2770mm*), L ≤ 15 m 2570mm*/2770mm* refers to total height with skylight opened |
|||
| Aisle Door | Manual one-way sliding full glass door, Electric one-way sliding full glass door Manual two-way sliding full glass door, Electric two-way sliding full glass door optional |
||
| Supported Cabinet Quantity | Single row: ≤ 24 cabinets; Double row: ≤ 48 cabinets | ||
| Power Standard | 380/400/415VAC, 50/60Hz, 3Ph+N+PE | ||
| IT Load per Module | ≤ 180kW (Built-in UPS); ≤ 135kW (Integrated Power Distribution Cabinet); ≤ 310kW (Precision Power Distribution Cabinet); ≤ 310kW (Smart Busbar); |
||
| Operating Environment | Ultra-low temp: -40~45℃; T1: -25~45℃; T3: -5~45℃ | ||
| Installation Method | Direct installation on concrete floor*, or raised floor installation* with load-bearing bracket | ||
| Cabling Method | Top-in & Top-out | ||
| Supported Battery Types | Lead-acid battery, Lithium battery | ||
| Battery Deployment | Battery cabinet, Battery rack, Battery box | ||
| Battery Backup Time | 15min~240min or customized on demand | ||
| Reliability Level | Upgradable to Tier IV | ||
| Altitude | Derating required above 1000m | ||
| Cabinet | Dimension (W*D*H) | 600/800mm×1200mm×2000mm；600/800mm×1200mm×2200mm * Cabinet frame dimension, excluding door |
|
| Available Space | 42U/47U | ||
| Cabinet Door & Air Perforation Rate | Front single door, rear double door, perforation rate ≥ 73% | ||
| IP Rating | IP20 | ||
| Integrated UPS (Module Built-in UPS) |
Input Voltage | 380/400/415VAC, 50/60Hz, 3Ph+N+PE | |
| Input Power Factor | ≥ 0.99 at full load | ||
| Rated Capacity | 20-200 kVA | ||
| AC Lightning Protection | Class B+C | ||
| Uninterruptible Power Supply (UPS) | Input Voltage | 380/400/415VAC, 50/60Hz, 3Ph+N+PE | |
| Input Power Factor | ≥ 0.99 at full load | ||
| Rated Capacity | 80-600kVA | ||
| Precision Power Distribution Cabinet (External UPS) | Input Voltage | 380/400/415 Vac,50/60 Hz,3Ph+N+PE | |
| Input Circuit Quantity | Single-circuit / Dual-circuit optional | ||
| Input Switch Rating | 160A/250A/400A/630A | ||
| AC Lightning Protection | Class C | ||
| Air-cooled In-row Precision Air Conditioner (Built-in Module) |
Cooling Capacity | 12.5kW/25kW/35kW/40kW/50kW/60kW | |
| Air Supply Mode | Indoor unit: front supply, rear return; Outdoor unit: Flat / V-type | ||
| Indoor Unit Dimension (W*D*H) | 300mm×1200mm×2000mm (12.5kW/25kW/35kW) 600mm×1200mm×2000mm (40kW/50kW/60kW) |
||
| Power Supply | 3-phase 380VAC 50HZ 3Ph+N+PE | ||
| Refrigerant | R410A | ||
| Options | Dual power supply, Low-temperature kit | ||
| Air-cooled In-row Fluorine Pump Intelligent Dual-cycle Precision AC (Built-in Module) |
Cooling Capacity | 12.5kW/25kW/35kW/40kW/50kW/60kW | |
| Air Supply Mode | Indoor unit: front supply, rear return; Outdoor unit: V-type | ||
| Indoor Unit Dimension (W*D*H) | 300mm×1200mm×2000mm (12.5kW/25kW/35kW) 600mm×1200mm×2000mm (40kW/50kW/60kW) |
||
| Power Supply | 3-phase 380VAC 50HZ 3Ph+N+PE | ||
| Refrigerant | R410A | ||
| Options | Dual power supply | ||
| Chilled Water In-row Precision AC (Built-in Module) |
Cooling Capacity | 30kW/60kW | |
| Air Supply Mode | Front supply, rear return | ||
| Indoor Unit Dimension (W*D*H) | 300mm×1200mm×2000mm (30kW) 600mm×1200mm×2000mm (60kW) |
||
| Power Supply | Single-phase 220V 50HZ / 3-phase 380VAC 50HZ 3Ph+N+PE | ||
| Heat Transfer Medium | Water / Ethylene Glycol Solution | ||
| Air-cooled Variable Frequency Room-level Precision AC (External Module) |
Cooling Capacity |
Single system:25/30/35/40/45/50kW； |
|
| Air Supply Mode | Indoor unit: bottom supply, top return; Outdoor unit: Flat / V-type | ||
| Power Supply | 3-phase 380VAC 50HZ 3Ph+N+PE | ||
| Refrigerant | R410A | ||
| Options | Dual power supply, Low-temperature kit | ||
| Air-cooled Room-level Fluorine Pump Intelligent Dual-cycle Precision AC (External Module) |
Cooling Capacity | 12.5kW/25kW/35kW/40kW/50kW/60kW | |
| Air Supply Mode | Indoor unit: front supply, rear return; Outdoor unit: V-type | ||
| Indoor Unit Dimension (W*D*H) | 300mm×1200mm×2000mm (12.5kW/25kW/35kW) 600mm×1200mm×2000mm (40kW/50kW/60kW) |
||
| Power Supply | 3-phase 380VAC 50HZ 3Ph+N+PE | ||
| Refrigerant | R410A | ||
| Options | Dual power supply | ||
| Chilled Water Room-level Precision AC (External Module) |
Cooling Capacity | 30kW-200kW | |
| Air Supply Mode | Indoor unit: bottom supply & top return / top supply & bottom return | ||
| Indoor Unit Dimension (W*D*H) | 300mm×1200mm×2000mm (30kW) 600mm×1200mm×2000mm (60kW) |
||
| Power Supply | Single-phase 220V 50HZ / 3-phase 380VAC 50HZ 3Ph+N+PE | ||
| Heat Transfer Medium | Water / Ethylene Glycol Solution | ||
| Integrated Monitoring System | HMI | 21-inch / 43-inch Smart Display | |
| Monitoring Devices | Temperature & humidity, smoke detector, water leakage detection, air conditioner, power supply & distribution, UPS, access control, camera, Audio/visual & SMS alarm |
||
| Monitoring Host | Mount: 1U Rack-mount Interface: 2 × 10/100M Ethernet, 12 independent signal input ports, ≥2 RS232 ports, ≥8 RS485 ports |
||
| Pre-terminated Intelligent Cabling System | MPO Pre-terminated Optical Patch Panel | MPO pre-terminated optical patch panel, empty frame, 4 sets, 1U height, supports 96 cores MPO pre-terminated optical patch panel, empty frame, 12 sets, 3U height, supports 288 cores |
|
| MPO/LC Pre-terminated Module | MPO/LC pre-terminated module, single-mode / multi-mode, 12/24 cores, OS2/OM3/OM4, LSZH | ||
| MPO / MPO Pre-terminated Patch Cord | MPO / MPO pre-terminated extension cord, single-mode / multi-mode, 12 /24 cores, OS2/OM4, customizable length, LSZH | ||
| ▋ Six Major Functions | ● Fusion Analysis ● Comprehensive Monitoring ● Topology Management ● Unified Management ● Asset Management ● Auxiliary Management |
|
| ▋ Five Core Advantages | Centralized Control | Centralized management for multiple all‑in‑one devices |
| Diverse Monitoring | Large‑screen, list, 3D and other monitoring modes | |
| Real‑time Monitoring | Dynamic full‑screen display of real‑time data and alarms | |
| Green Product | Support computer room energy consumption and PUE display | |
| Systematic Management | Access & video management; flexible multi‑level alarm linkage | |
| ▋ Touch Screen | Displays environment monitoring data on all‑in‑one touch screen Intuitive view of device data for users Operators instantly check computer room operating status |
|
